Samsung Electronics and POSTECH have revealed a analysis paper titled “ Switchable 2D-3D display through a metasurface lenticular lens” within the prestigious journal Nature, marking notable progress in next-generation show expertise by industry-academia collaboration.
Rethinking 3D Displays With Metasurfaces

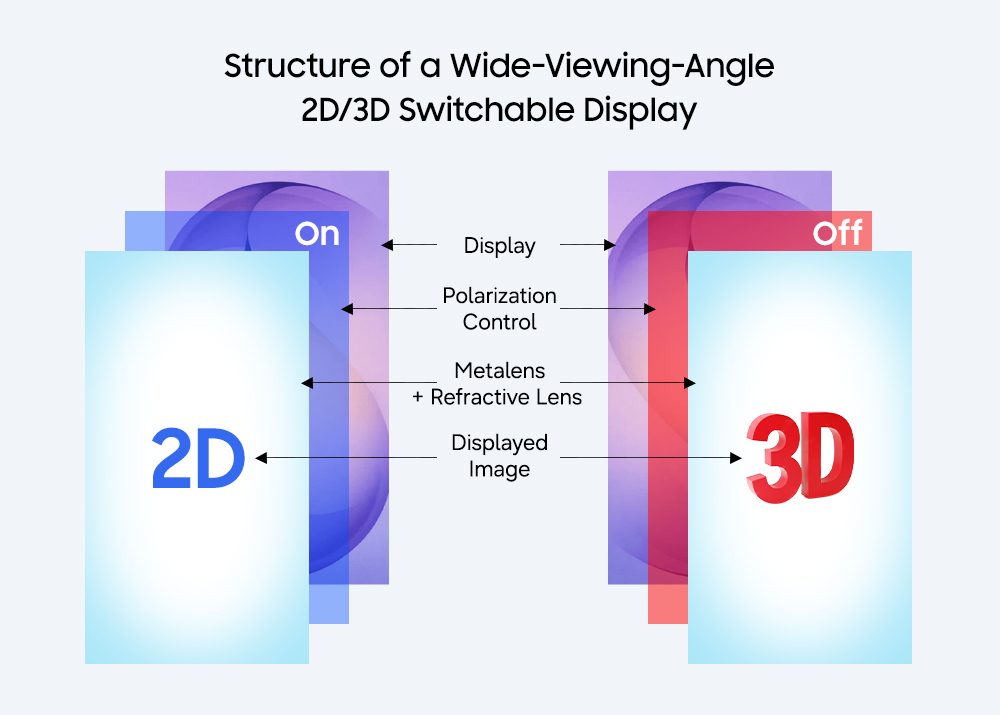

A metasurface lenticular lens-based switchable 2D/3D show makes use of an ultra-thin metalens1 composed of nanoscale constructions to transition seamlessly between flat (2D) and stereoscopic (3D) photos.
A metasurface is considerably thinner whereas enabling advanced optical features — making it key to next-generation shows and digicam programs.

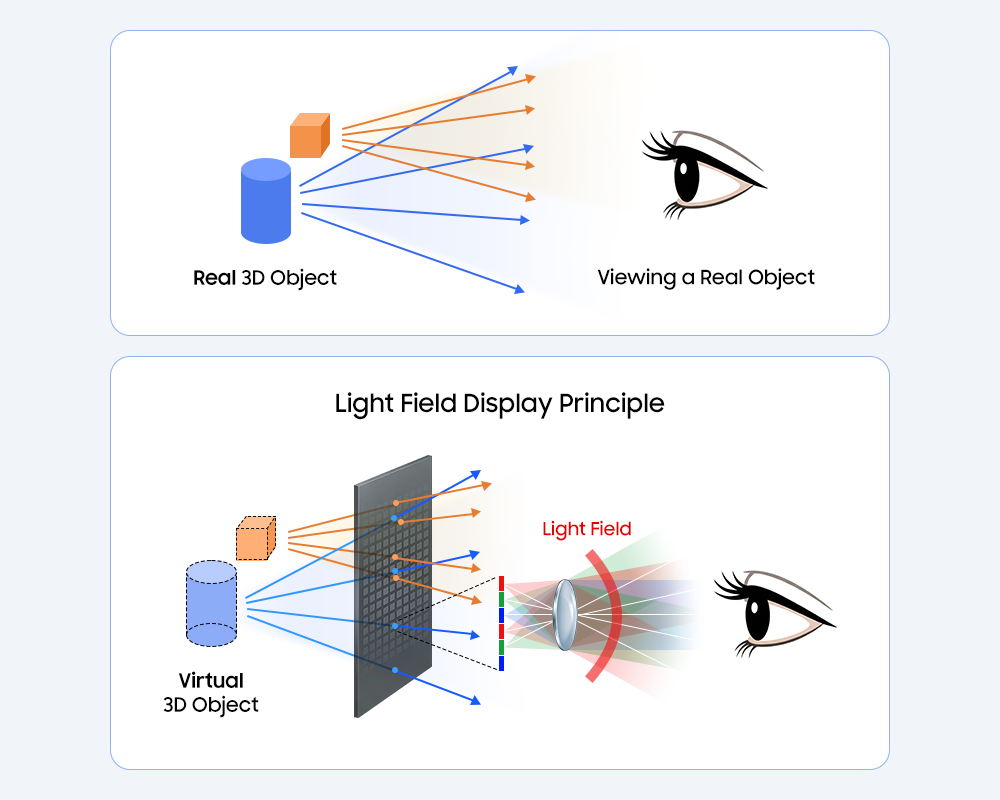

This strategy advances Light Field Display by directing gentle from a number of angles to create a glasses-free 3D expertise that mimics real-world notion.
Though lengthy thought of promising for leisure, augmented actuality (AR) and medical imaging, typical Light Field Displays face commercialization challenges, together with cumbersome optics, slim viewing angles (round 15 levels), lowered decision and reliance on real-time eye monitoring.
The analysis workforce addressed these limitations utilizing polarization — the path by which gentle oscillates — to design a metasurface lenticular lens (MLL) that dynamically adjusts focal properties.
Switching Between 2D and 3D
The research is the primary to reveal a meta-optical system able to switching between 2D and 3D modes in a single gadget utilizing voltage management. For finish customers, it’s a breakthrough that would ultimately allow them to decide on between high-resolution 2D for on a regular basis duties and immersive, multi-view 3D for video.

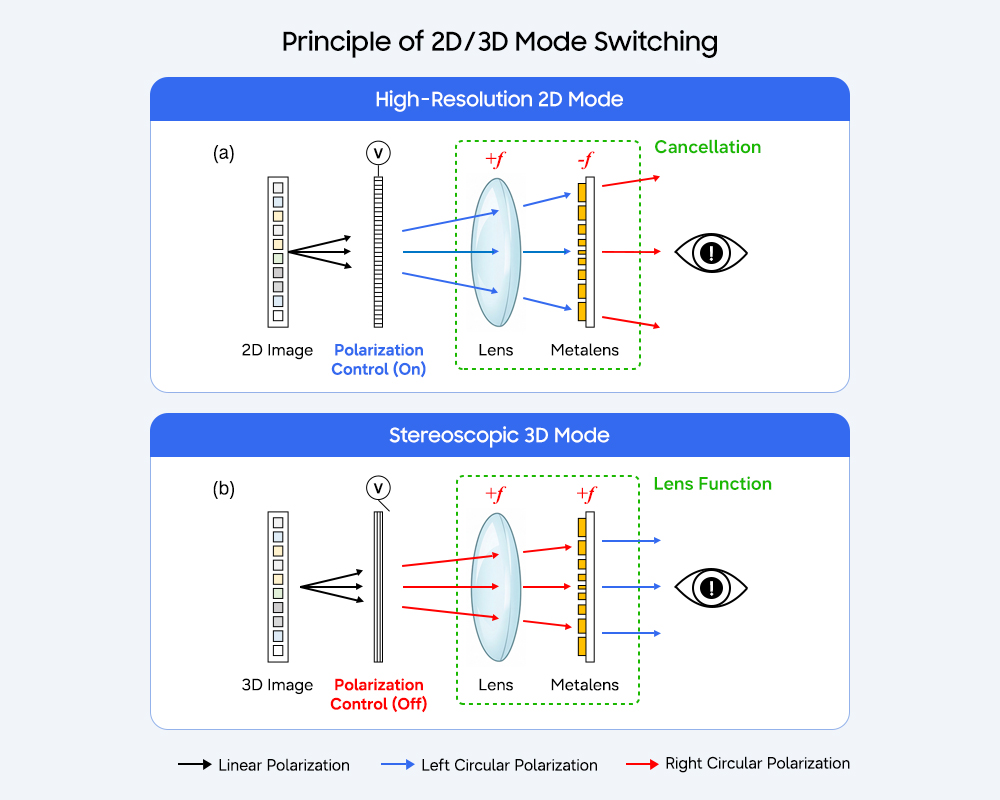

The system switches the metalens between concave and convex modes relying on the polarization controller in entrance of the show. For 2D viewing — akin to studying or searching — the metalens acts as a concave lens (controller on), offsetting the convex lens and permitting gentle to cross straight by like a flat pane of glass to provide a transparent picture.
For 3D content material, the metalens turns into convex when the controller is off and works with the present lens to reinforce depth and widen the viewing angle. Through this, it may present each the readability of 2D and the depth of 3D concurrently.
Thinner Design, Wider Viewing Angles

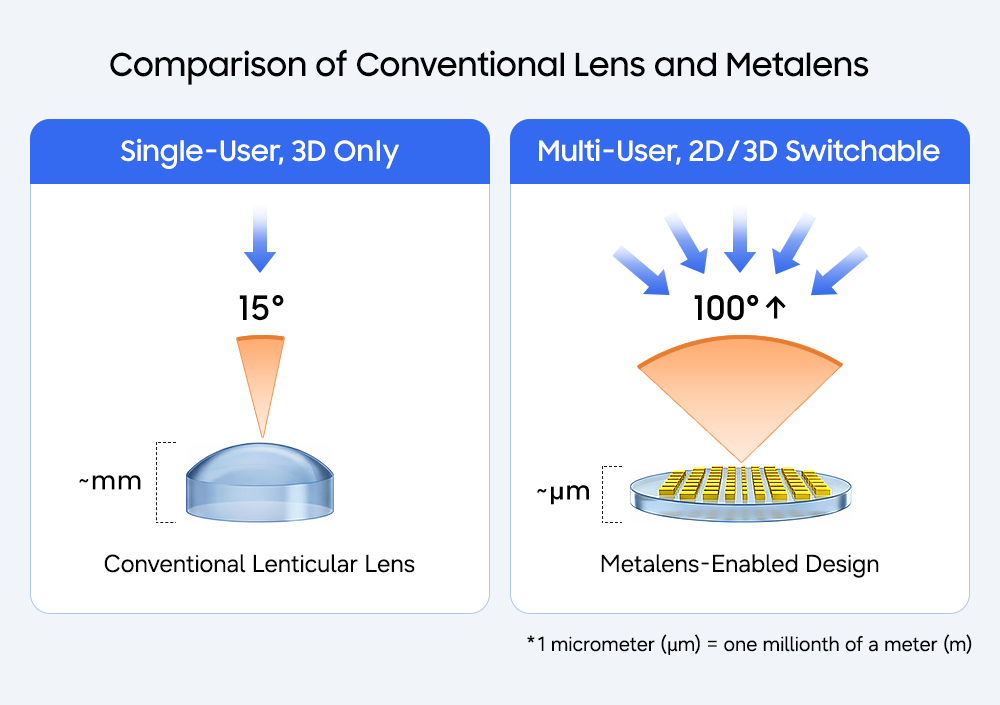

A significant achievement of this analysis is the dramatic enchancment in each thickness and viewing angle. Traditionally, excessive picture high quality and a large viewing angle required massive, thick lenses. The workforce’s MLL, nevertheless, incorporates a excessive numerical aperture (NA)2 — enabling an ultra-thin profile of 1.2 mm and an ultra-wide viewing angle of as much as 100 levels. This represents greater than a sixfold improve from the traditional 15-degree viewing angle, permitting a number of viewers to expertise 3D content material from completely different positions. It additionally demonstrates how nanoscale design can overcome the restrictions of cumbersome optical programs.
A Step Closer to Commercialization

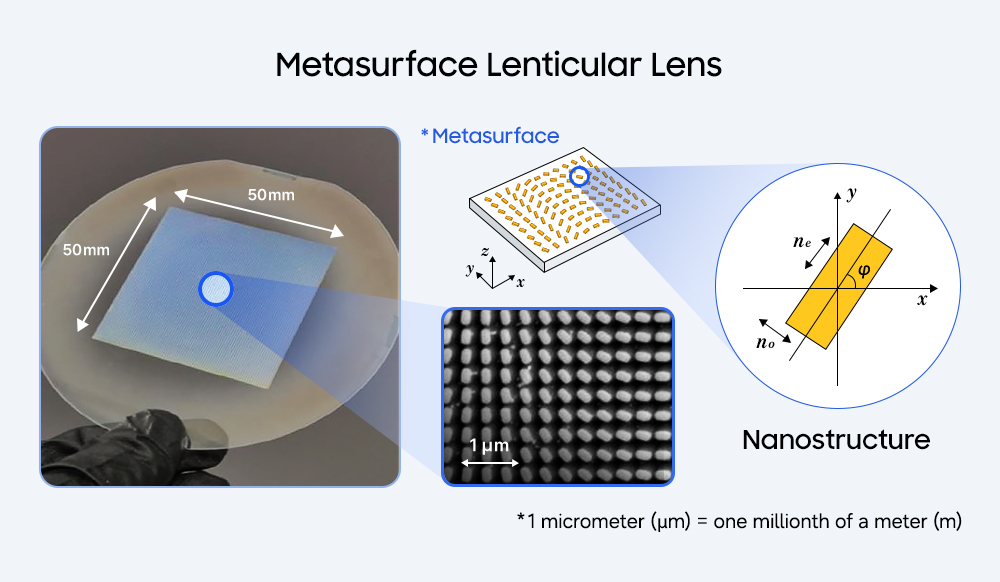

Beyond a easy proof of idea, the analysis demonstrates the sensible viability of integrating metalens expertise into real-world gadgets. The workforce fabricated a large-area metalens measuring 50 × 50 mm (25 cm²) and validated its use on OLED panels broadly utilized in cellular gadgets.
This analysis was carried out in collaboration with the Visual Technology Team at Samsung Research, Samsung Electronics, and the POSTECH Nanoscale Photonics & Integrated Manufacturing Laboratory.
