Typically, most monitors support NTSC and PAL television systems. We default NTSC as TV system . If your display only supports PAL, please contact customer service before purchasing.
Owing to this product is dedicated, so before buying, you can according to the sizes we offer to see if suitable for your car. Or in order to provide you with better service,please leave your car’s year, model as well as the picture and size of vehicle vehicle trunk handle position. You can also contact customer service.
Applicable Models for :
12/13/14/15 Audi S5/Q3/Q5/09/10 Passat Lingyu,09/10Tiguan
12/13/15 Sagitar
11/13/15 New Passat
11/12/13/15/16 Touareg
Easy installation:
1. Mount the camera to your car’s vehicle trunk handle position. Do not destroy the original car style, retain the original car trunk switch function.
2. Adjust the camera lens to the best position.
3. Connect power wire (red and black) to your vehicle DC 12V power system.
4. Connect the video output (yellow interface) of the camera to the display in your vehicle.
Specification :
Image Sensors: 1/3” color Digital CMOS
Waterproof grade: IP 67
Effective Pixels: 756*504
TV System: NTSC
Lens Angle (Deg.):170° diagonal
Video output:1.0vp-p,750hm
Power Supply:DC12V±1V
Power:0.5w-1.5w
Current Consumption (mA):40-120mA
Package Includes
1*Car rear view camera
1*1.2m Power wire(4ft)
1*6.5m Video wire(21ft)
1*0.5m Conversion wire(2ft)
1*user manual

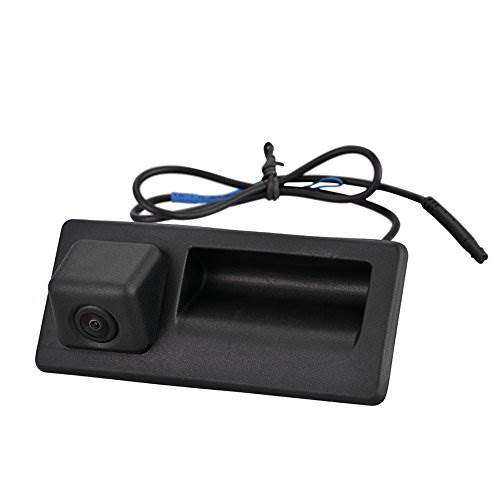

Please consult us first if you didn’t know whether this product fits your car or not. And make sure the size and appearance is the same as your original Trunk Handle Backup Camera. Thanks a lot!Volkswagen Jetta special trunk switch design, increase the reverse image function, replace the original car trunk handle switch position, perfect match, no damage installation.
3G1P HD lens still retain the sharpness of the original image even if it has been used for many years.
Conform to the IP67 waterproof standard, so you don’t worry about fog. The camera can work in normal weather conditions and at night.
Guideline selection – cutting blue line will not show the scale line. 170 degrees diagonally visible range, clear the blind area, reversing safety.
High-definition color CMOS, pixels: 320,000, 0.01Lux. Perfectly night vision and solve the issue of bad car rear view effect; Useful even in dark place.
