buy now
$24.98
Details

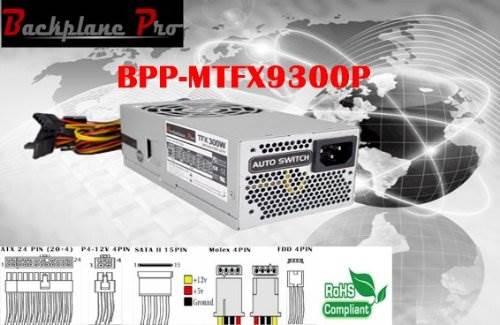

300 Watts +3.3V@13A, +5V@13A, +12V1@9A, +12V2@9A, -12V@0.8A, +5VSB@2.5A
Includes internal 40mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation.
Designed for the TFX form factor to provide compact flexibility for small computer cases
It is also compatible with many main brand systems.
Dielectric Withstand: Primary Frame Ground 1800V AC for 1 Second Rise time: Less than 20ms
Temperature Range: Operating: 0°C to +50°C on Full Load;Storage & Shipping: -20°C to +80°C Humidity: 5% – 90% on Operating, 5% – 95% on Storage
Connectors
1 x 20+4 pin Main Connector (works with either 20 pin or 24 pin main connector
1 x 4 Pin P4 12V
3 x 15 pin SATA
3 x 4 pin Molex
1 x 4 pin Floppy
Manufacturer Warranty
Parts: 1 year limited
Labor: 1 year limited
HP Pavilion S5000
S5100BR
S5100LA
S5100Z CTO
S5103KR
S5107C
S5107KR
S5108HK
S5110LA
S5110T
S5112F
S5113W
S5114F
S5116F
S5117C
S5118F
S5120BR
S5120F
Guaranteed to fit your model Slimline Computer List below
1 x Main connector (20+4Pin) This works with both 20 pin and 24 pin main connectors!
1 x 12V P4 connector, 3 x 4-pin Molex Connector, 2 x SATA(Serial ATA) connector, 1 x Floppy connector
300 Watts – This is an upgrade with additional wattage for additional devices, this replaces lower wattage power supplies
