Memory Frequency Scaling on Intel's Skull Canyon NUC …

Overclocking has generally been the domain of enthusiasts with desktop rigs. However, increasing the CPU frequency beyond the official specification is not the only way to extract more performance from a computing system. Memory-bound workloads can benefit from memory hierarchies with increased bandwidth and/or lower latencies.

The memory controller in the Intel U-series processors (on which most, if not all, high performance SFF systems are based) is rated for operation only according to the standard JEDEC guidelines (1600 MHz for DDR3 and 2133 MHz for DDR4). However, the Skull Canyon NUC (NUC6i7KYK) can support DDR4 SODIMMs operating at 2133 MHz+. In this article, we explore the effects of varying DDR4 frequencies and latencies on the NUC6i7KYK.

Intel’s Skylake platform brought DDR4 DRAM into the mainstream market. DDR4 brings a host of improvements over DDR3, particularly in terms of operating at lower voltage and higher frequencies. Another important advantage is the maximum capacity per DIMM (moving from the usual 8GB in DDR3 to 16GB in DDR4). On standard non-overclocked systems, the DDR4 memory can operate at up to 2133 MHz. DDR4 DIMMs operating as high as 3733 MHz are available for desktop systems with full-sized memory slots. On the SODIMM side, we have seen various vendors introduce kits operating at more than 2133 MHz. However, there are very few systems utilizing DDR4 SODIMMs that also support for memory overclocking (a term I will use in this article to indicate DDR4 operation at more than 2133 MHz).

SODIMMs are used in notebooks and SFF PCs. The memory in most notebooks is rarely upgraded, and many high-performance notebooks are now opting to go with soldered DRAM instead of SODIMM slots. That leaves SFF PCs as the only viable option to explore the benefits of these new wave of DDR4 SODIMMs. Skylake-U is not an effective option because its memory controller is rated to operate at only 2133 MHz. However, the Skull Canyon NUC (NUC6i7KYK), which combines a Skylake-H CPU (Core i7-6770HQ) with the H170 chipset, is a completely different platform. The BIOS includes XMP support, resulting in the appropriate SODIMM kits operating at speeds higher than 2133 MHz automatically.

One of the advantages of DDR4 SODIMMs is that we can get up to 16GB on a single SODIMM. On systems like the NUC6i7KYK with two SODIMM slots, we can have up to 32GB of DRAM. To that end, for today’s article we have procured 2x16GB DDR4 SODIMM kits rated for operation at more than 2133 MHz from Corsair, Crucial, G.Skill, Kingston and Patriot Memory to study the impact of memory overclocking on the performance of Skull Canyon.

Our Skull Canyon NUC (NUC6i7KYK) review analyzed the platform and BIOS in great detail. The block diagram shows two channels of DDR4 memory operating at 1.2V for a 128b memory interface. When both memory slots are occupied, the two memory channels operate in dual-channel symmetric mode (also known as interleaved mode) and provide the best performance for real-world applications. Addresses are ping-ponged between the channels after each cache line boundary (64 bytes). In the case that only one slot is occupied, the operation is in single-channel asymmetric mode. The memory controller does support ECC RAM (since it is used in the Xeon E3-1500 v5 lineup also), but the feature is disabled in the Core i7-6770HQ.

Intel recommends that the SODIMMs used in the NUC6i7KYK support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read the SPD data and program the chipset to accurately configure memory settings for optimum performance. If non-SPD memory is installed, the BIOS will attempt to correctly configure the memory settings, but performance and reliability may be impacted or the SO-DIMMs may not function under the determined frequency.

The other interesting aspect of the Core i7-6770HQ that bears relevance to the performance of the NUC6i7KYK is the internal memory hierarchy. The processor is one of the Skylake-H members to come with a 128MB On-Package Cache (eDRAM). The processor also features a 6MB L3 (LLC) cache, which is smarted among all 4 CPU cores. Each core also has a dedicated 256KB L2 cache (making for a total of 1MB L2 in the Core i7-6770HQ). Skylake’s core architecture (32KB of I-cache and 32KB of D-cache) is well-known and has been analyzed before.

The LLC in the Core i7-6770HQ is only 6MB (1.5MB/core), while other members of the Skylake-H family with Iris Pro Graphics (same 128MB eDRAM configuration) have 2MB of LLC per core (total of 8MB). The most important aspect here is that the eDRAM is not available only to the GPU, but also to the other clients of the memory controller.

The BIOS of the NUC6i7KYK supports the Extreme Memory Profile (XMP), an Intel-developed JEDEC SPD extension for memory kits to indicate support for high-performance timings that are beyond the standard JEDEC standard. This allows ‘overclocked’ memory kits to be plug-and-play. The BIOS can read the extra SPD information at boot time and automatically set the memory timings to the overclocked configuration.

The rest of this review deals with the quantitative measurement of the effectiveness of different types of DRAM in the Skull Canyon NUC. In order to do this, we processed various benchmarks while keeping everything other than the DRAM SODIMMs constant. Each configuration was booted to BIOS multiple times to ensure that the SPD information was properly parsed and the optimal frequency / timing parameters chosen. Once the OS was booted, we also checked with multiple hardware monitoring tools that the parameters indicated by the BIOS for the DRAM SODIMMs were indeed what the OS was also seeing.

In the next section, we will first take a look at the specifications of the five SODIMM kits that were evaluated in the NUC6i7KYK, along with the AIDA64 Memory Bench for each. Following this, we present the relevant benchmarks from Intel’s Memory Latency Checker tool to determine the raw performance of the DRAM in the system. This is followed by our standard test suite for mini-PCs with a gaming focus – SYSmark 2014, Futuremark benchmarks and some select gaming titles. Prior to our concluding remarks, we take a look at a few miscellaneous aspects such as power consumption and pricing.

There are plenty of DDR4 SODIMM kits that are compatible with the Intel Skull Canyon NUC (NUC6i7KYK). However, it is likely that people interested in memory overclocking are likely to go for the premium options in terms of speed as well as capacity. In addition to the frequency, the timing parameters / latency numbers also influence the performance. For our evaluation today, we are going to look at five different options (presented below in alphabetical order of the vendors):

• Corsair Vengeance DDR4 SODIMM 2x16GB @ 2666 MHz, 18-19-19-39
• Crucial Ballistix Sport LT DDR4 SODIMM 2x16GB @ 2400 MHz, 16-16-16-39
• G.Skill Ripjaws DDR4 SODIMM 2x16GB @ 3000 MHz, 16-18-18-43
• Kingston HyperX Impact DDR4 SODIMM 2x16GB @ 2400 MHz, 14-14-14-35
• Patriot Viper Series DDR4 SODIMM 2x16GB @ 2800 MHz, 18-18-18-43

Out of these kits, the G.Skill Ripjaws and the Kingston HyperX Impact stand out. The former for being the kit with the maximum rated operating frequency and the latter for having the lowest latency numbers of all the tested kits.

Corsair Vengeance [ 2666 MHz, 18-19-19-39 ]

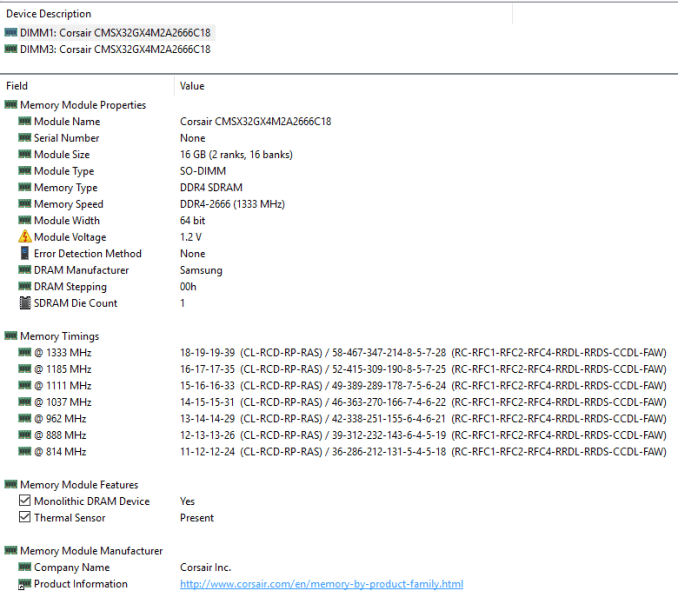

The Corsair Vengeance memory kit used in our review supports XMP, and no special configuration is needed to take advantage of the higher performance timings. FinalWire’s AIDA64 can do extensive parsing of the SPD information and present the results in an easy-to-understand manner. Our review kit contained memory sourced from Samsung.

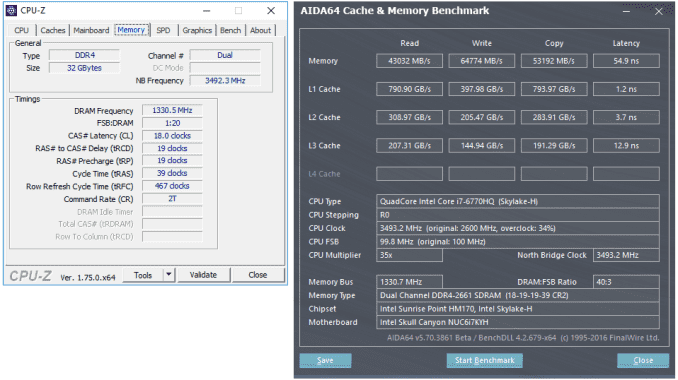

CPU-Z shows the operating parameters of the SODIMMs as seen by the OS. AIDA64 also has a quick cache and memory benchmark that provides some basic bandwidth and latency numbers to ensure that the kits are operating as expected.

Crucial Ballistix Sport LT [ 2400 MHz, 16-16-16-39 ]

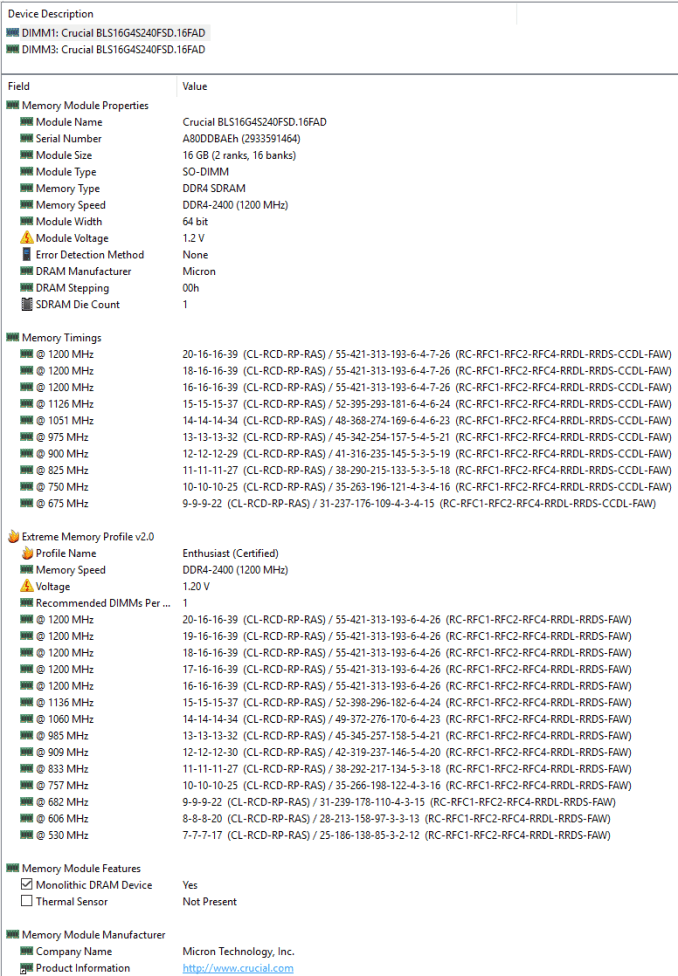

The Crucial Ballistix Sport LT memory kit also supports XMP, and was able to run at 2400 MHz right out of the box. Given that Crucial is Micron’s brand, it is no surprise that the memory in the kit is sourced from Micron’s fabs.

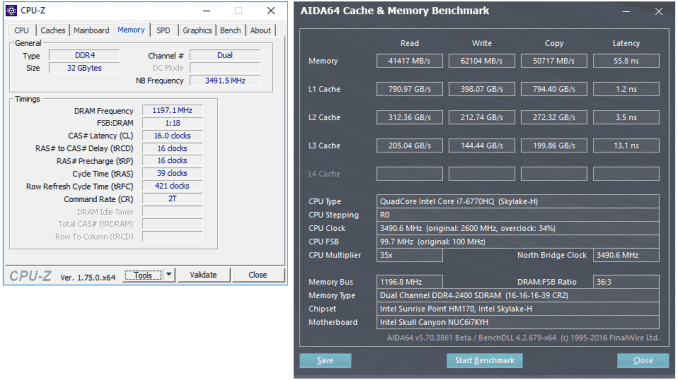

The relevant CPU-Z and AIDA64 memory benchmark screenshots are provided below.

G.Skill Ripjaws [ 3000 MHz, 16-18-18-43 ]

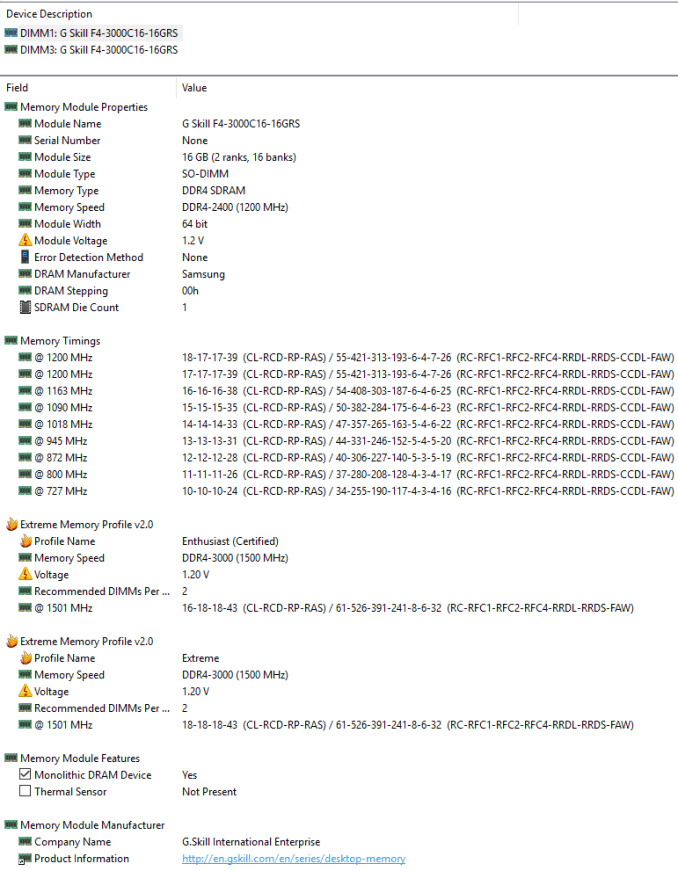

The G.Skill Ripjaws memory kit used in this study turns out to be an excellent candidate in terms of specifications. Not only does it operate at higher frequencies compared to all other kits in the review, it also has better latency numbers compared to the Corsair and Patriot kits which operate at lower frequencies. AIDA64 shows that the kit also supports two XMP profiles for the highest operating frequency (DDR4-3000), one at 16-18-18-43 and another at 18-18-18-43. The memory is sourced from Samsung.

Upon booting into the BIOS after installation, I found that the memory was only configured to run at 2667 MHz. Altering the ‘Automatic’ DRAM timings to ‘Manual’ and ‘user-defining’ the various timing parameters as printed…
