Ultra-compact form factor (UCFF) PCs have become quite popular after Intel introduced the NUCs. They have become powerful enough to be the primary computing platform for many households. However, consumers looking for UCFF PCs for specialized applications and industrial usage have been contending with high prices and lack of suitable options. GIGABYTE’s BRIX family has emerged over the last several years as a compelling alternative to the Intel NUCs. With Skylake-U, GIGABYTE’s BRIX family has expanded with multiple options catering to various market segments. This review will take a look at the GB-BSi7HAL-6500, a Skylake-U UCFF PC with two gigabit LAN ports.




The Skylake-U platform for mini-PCs has turned out to be an interesting one. Numerous challenges were faced by the first one in the market – the Intel Skylake NUC. Eventual BIOS fixes made the platform realize its full potential. All these aspects made Intel’s partners take it a bit slow when it came to promoting their Skylake-U mini-PCs. GIGABYTE’s Skylake-U BRIX series first came into the news late last year for being one of the first OEM PCs to sport the Alpine Ridge Thunderbolt 3 / USB 3.1 Gen 2 controller. The product took a long time to appear in the market after the announcement. GIGABYTE, in the meanwhile, worked upon slightly tweaking various aspects of the platform to create new SKUs that could cater to a wider market.


A look at the GIGABYTE BRIX listings shows more than 20 different Skylake-U units (models starting with GB-BS). Readers might find it useful to narrow down the offerings with the following guide to parsing the model numbers. Each barebones Skylake BRIX SKU has a model number fitting the following format:


GB-BS<CoreSeriesIdentifier-01>(H)(T|A)(L|C)-<CoreSeriesIdentifier-02>


The CPU in the SKU can be determined using the CoreSeriesIdentifier. For example, our review sample, the GB-BS<i7>HAL-<6500> has the Intel Core i7-6500U. The other parts of the model number are optional. For example, we have the GB-BSi7-6500, which is essentially a Skylake-U NUC clone with no bells and whistles, but, just sporting a CPU option that the Intel NUC lineup doesn’t provide.


The optional components indicate the presence of the following features:


  • H = 2.5″ drive support
  • T = Thunderbolt 3 / USB 3.1 Gen 2 using the Alpine Ridge chipset
  • A = Dual USB 3.1 Gen 2 ports (1x Type-A and 1x Type-C) using the ASMedia 1142 USB 3.1 Gen 2 controller
  • L = Dual RJ-45 gigabit LAN ports
  • C = COM (RS-232) port (RJ-45 slot similar to the L SKU, and a RJ-45 to COM cable bundled)

GIGABYTE sampled us the barebones version of the GB-BSi7HAL-6500. We completed the configuration using a Toshiba OCZ RD400 512GB M.2 PCIe 3.0 x4 NVMe SSD and 2×16 GB Crucial Ballistix Sport LT DDR SODIMMs. Though the SODIMMs are capable of operating at 2400 MHz, the BRIX set it to operate at 2133 MHz. The specifications of our review configuration are summarized below.














GIGABYTE GB-BSi7HAL-6500 Specifications
Processor Intel Core i7-6500U

Skylake, 2C/4T, 2.5 GHz (Turbo to 3.1 GHz), 14nm, 4MB L2, 15W TDP
Memory Crucial Ballistix Sport LT BLS16G4S240FSD.16FAD DDR4

15-15-15-35 @ 2133 MHz

2×16 GB
Graphics Intel HD Graphics 520
Disk Drive(s) Toshiba OCZ RD400

(512 GB; M.2 Type 2280 PCIe 3.0 x4 NVMe; Toshiba 15nm; MLC)
Networking Intel Dual Band Wireless-AC 3165

(1×1 802.11ac – 433 Mbps)

Intel Gigabit Ethernet Connection I210

Intel Gigabit Ethernet Connection I219-LM
Audio 3.5mm Headphone / Microphone Combo Jack (Realtek ALC555)

Capable of 5.1/7.1 digital output with HD audio bitstreaming (HDMI)
Display 1x mini-DP 1.2 (3840×2160 @ 60 Hz)

1x HDMI 1.4b (4096×2160 @ 24Hz)
Miscellaneous I/O Ports 1x USB 3.1 Gen 2 Type-A

1x USB 3.1 Gen 2 Type-C

2x USB 3.0 Type-A
Operating System Retail unit is barebones, but we installed Windows 10 Pro x64
Pricing (As configured) $591 ($1030)
Full Specifications GB-BSi7HAL-6500 Specifications

Buy GIGABYTE GB-BSi7HAL-6500 Dual LAN mini-PC on Amazon.com

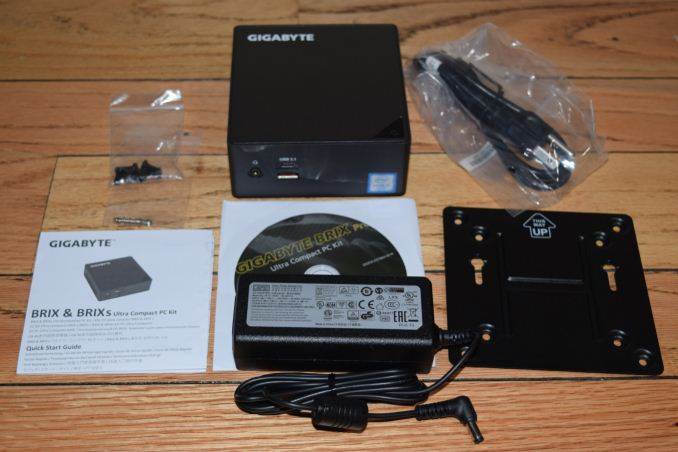

The GB-BSi7HAL-6500 come with a CD and a read-only USB key containing Windows drivers. In any case, we ended up installing the latest drivers downloaded off GIGABYTE’s product support page. In addition to the main unit, the other components of the package include a 65 W (19V @ 3.42A) adapter with a US power connector, a VESA mount (along with the necessary screws), a driver CD and USB key, and a quick-start guide.



The unit also supports a 2.5″ drive. The appropriate SATA cable (data and power together in the typical notebook form factor) is pre-installed inside the main unit (as can be seen in the gallery below).


Gallery: GIGABYTE GB-BSi7HAL-6500 Chassis Design & Internals


The metal frame on the inside of the bottom lid (which holds the 2.5″ drive in place) also has a thermal pad positioned to aid in the dissipation of heat from any M.2 SSD used in the system.

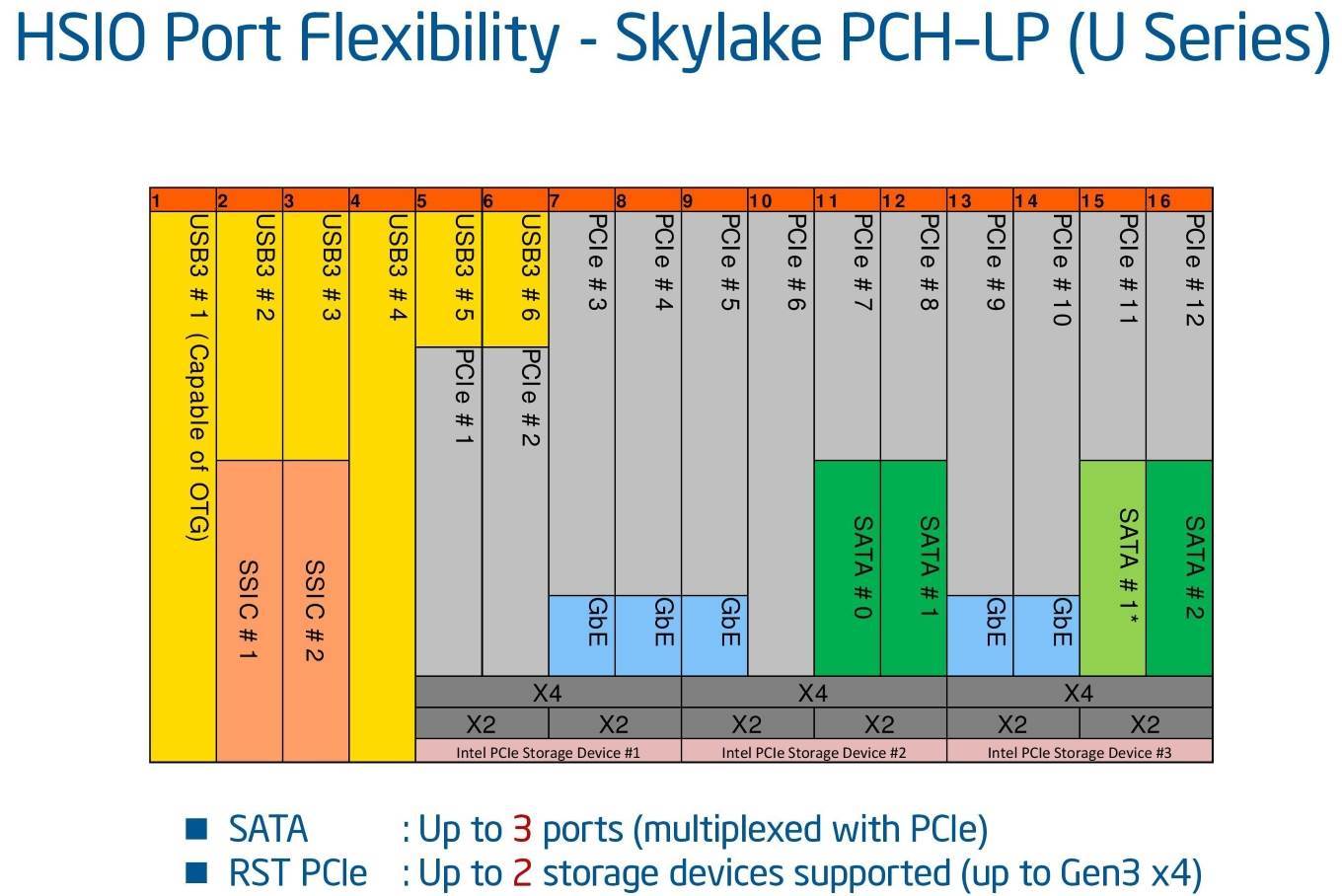

The GB-BSi7HAL-6500 is based on the standard Skylake-U platform with the Sunrise Point-LP PCH integrated in the same package as the CPU. There are a maximum of 16 possible high-speed I/O lanes in a Skylake-U system, and they can be configured in a flexible manner.



The PCIe lanes in our configuration of the GB-BSi7HAL-6500 are distributed as follows:


  • PCI-E 3.0 x2 port #1      In Use @ x2 (ASMedia ASM1142 USB 3.1 xHCI Controller)
  • PCI-E 3.0 x1 port #3      In Use @ x1 (Intel I210 Gigabit Network Connection)
  • PCI-E 3.0 x1 port #6      In Use @ x1 (Intel Dual Band Wireless-AC 3165 AC HMC WiFi Adapter)
  • PCI-E 3.0 x4 port #9      In Use @ x4 (Toshiba OCZ RD400 M.2 NVMe Drive)

In the table below, we have an overview of the various systems that we are comparing the GIGABYTE GB-BSi7HAL-6500 against. Note that they may not belong to the same market segment. The relevant configuration details of the machines are provided so that readers have an understanding of why some benchmark numbers are skewed for or against the GB-BSi7HAL-6500 when we come to those sections.











Comparative PC Configurations
Aspect GIGABYTE GB-BSi7HAL-6500
CPU Intel Core i7-6500U Intel Core i7-6500U
GPU Intel HD Graphics 520 Intel HD Graphics 520
RAM Crucial Ballistix Sport LT BLS16G4S240FSD.16FAD DDR4

15-15-15-35 @ 2133 MHz

2×16 GB
Crucial Ballistix Sport LT BLS16G4S240FSD.16FAD DDR4

15-15-15-35 @ 2133 MHz

2×16 GB
Storage Toshiba OCZ RD400

(512 GB; M.2 Type 2280 PCIe 3.0 x4 NVMe; Toshiba 15nm; MLC)
Toshiba OCZ RD400

(512 GB; M.2 Type 2280 PCIe 3.0 x4 NVMe; Toshiba 15nm; MLC)
Wi-Fi Intel Dual Band Wireless-AC 3165

(1×1 802.11ac – 433 Mbps)
Intel Dual Band Wireless-AC 3165

(1×1 802.11ac – 433 Mbps)
Price (in USD, when built) $1030 $1030


The GIGABYTE GB-BSi7HAL-6500 was evaluated using our standard test suite for low power desktops / industrial PCs. Not all benchmarks were processed on all the machines due to updates in our testing procedures. Therefore, the list of PCs in each graph might not be the same. In the first section, we will be looking at SYSmark 2014, as well as some of the Futuremark benchmarks.


BAPCo SYSmark 2014


BAPCo’s SYSmark 2014 is an application-based benchmark that uses real-world applications to replay usage patterns of business users in the areas of office productivity, media creation and data/financial analysis. Scores are meant to be compared against a reference desktop (HP ProDesk 600 G1 with a Core i3-4130, 4GB RAM and a 500GB hard drive) that scores 1000 in each of the scenarios. A score of, say, 2000, would imply that the system under test is twice as fast as the reference system.

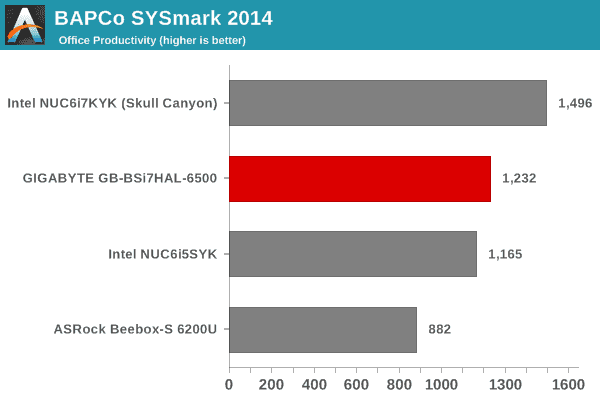

SYSmark 2014 - Office Productivity

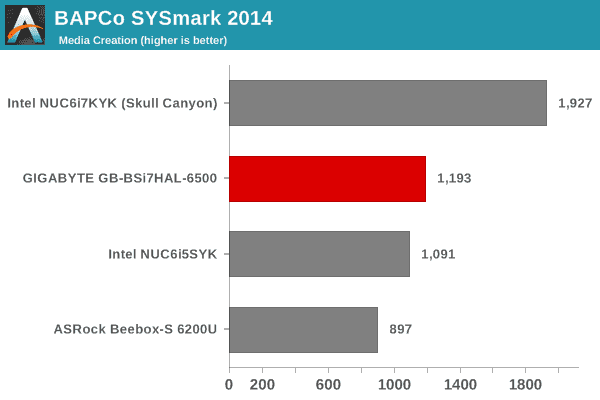

SYSmark 2014 - Media Creation

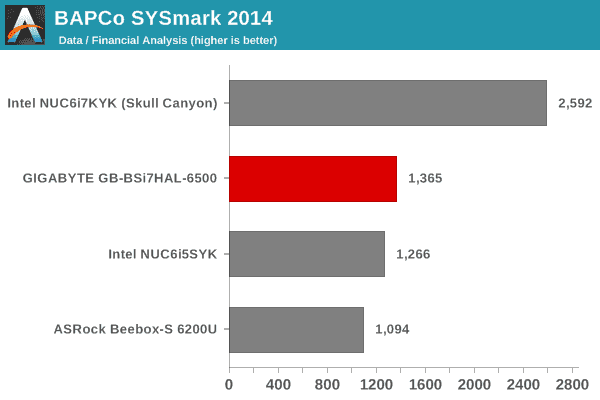

SYSmark 2014 - Data / Financial Analysis

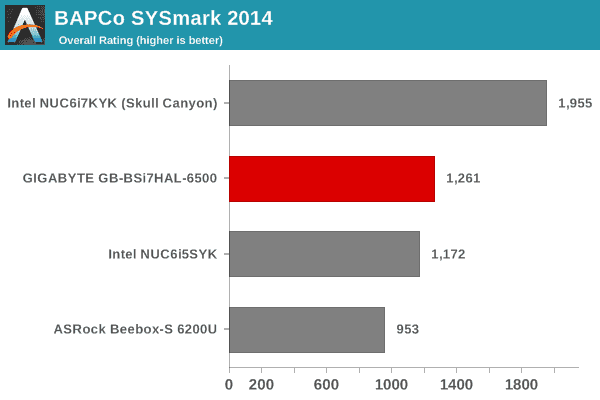

SYSmark 2014 - Overall Score


As expected, the Core i7-6500U is one of the most powerful Skylake-U CPUs, and the GB-BSi7HAL-6500 has the best scores amongst all the Skylake-U UCFF PCs. Obviously, it is no match for the Skylake-H Core i7-6770HQ in the Skull Canyon NUC.


Futuremark PCMark 8


PCMark 8 provides various usage scenarios (home, creative and work) and offers ways to benchmark both baseline (CPU-only) as well as OpenCL accelerated (CPU + GPU) performance. We benchmarked select PCs for the OpenCL accelerated performance in all three usage scenarios. These scores are heavily influenced by the CPU in the system. The CPU-bound scores are similar to what we saw in the SYSmark section. The benchmarks influenced by the GPU present a slightly different story, as the NUC6i5SYK’s Intel Iris Graphics 540 is more powerful compared to the Intel HD Graphics 520 in the GB-BSi7HAL-6500.

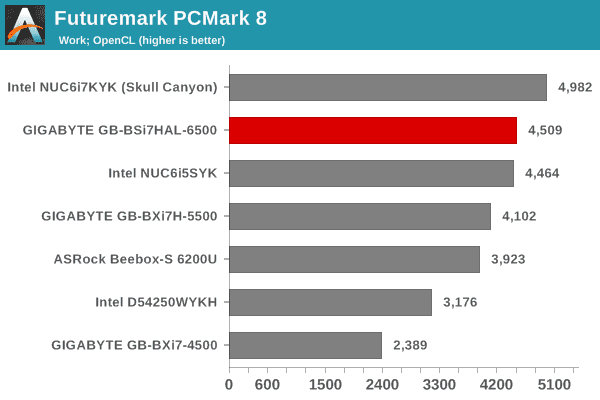

Futuremark PCMark 8 - Home OpenCL

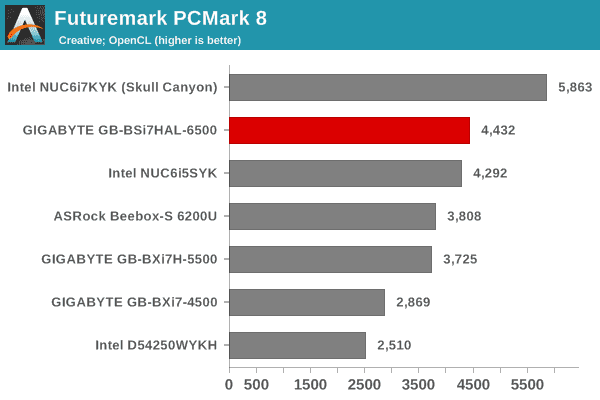

Futuremark PCMark 8 - Creative OpenCL


Futuremark PCMark 8 - Work OpenCL


Miscellaneous Futuremark Benchmarks

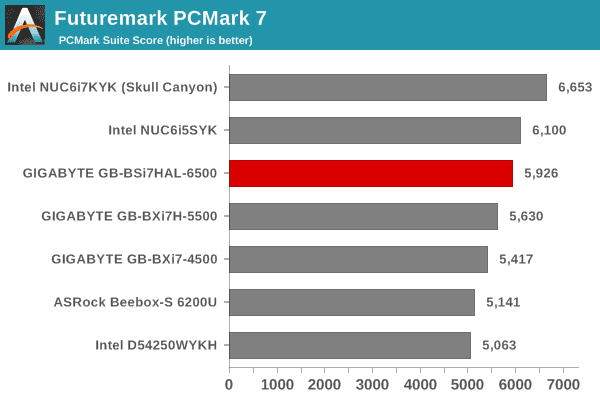

Futuremark PCMark 7 - PCMark Suite Score

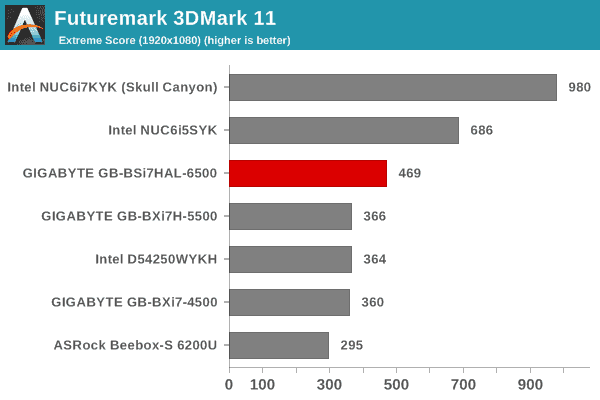

Futuremark 3DMark 11 - Extreme Score

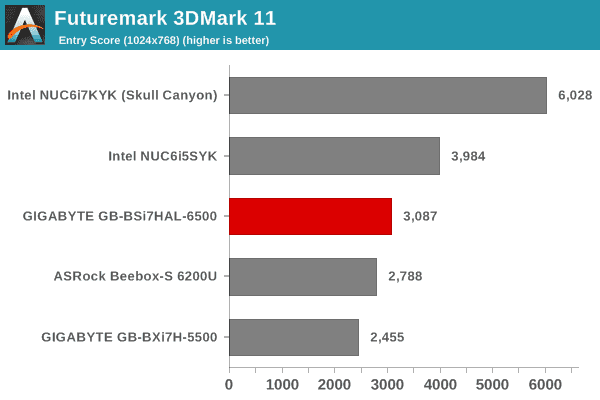

Futuremark 3DMark 11 - Entry Score

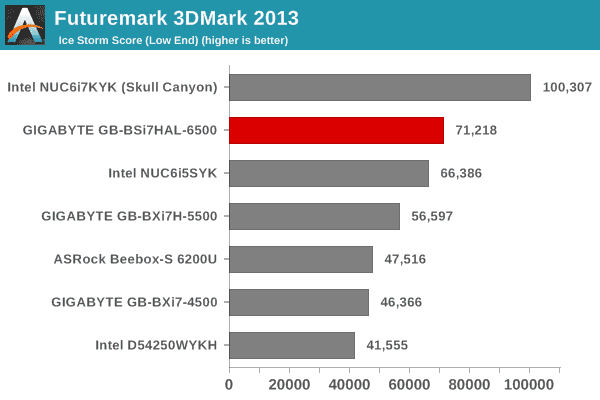

Futuremark 3DMark 2013 - Ice Storm Score

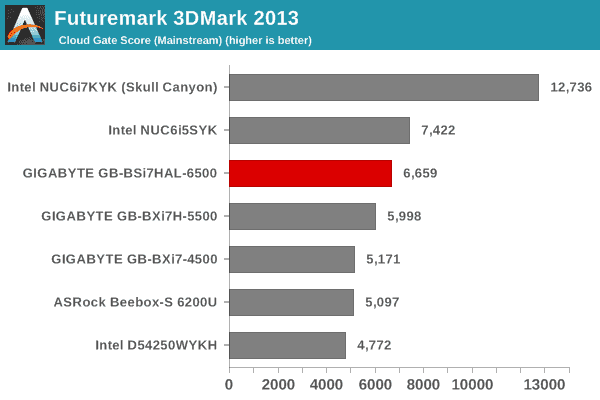

Futuremark 3DMark 2013 - Cloud Gate Score


3D Rendering – CINEBENCH R15


CINEBENCH R15 provides three benchmark modes – OpenGL, single threaded and multi-threaded. Evaluation of select PCs in all three modes provided us the following results.

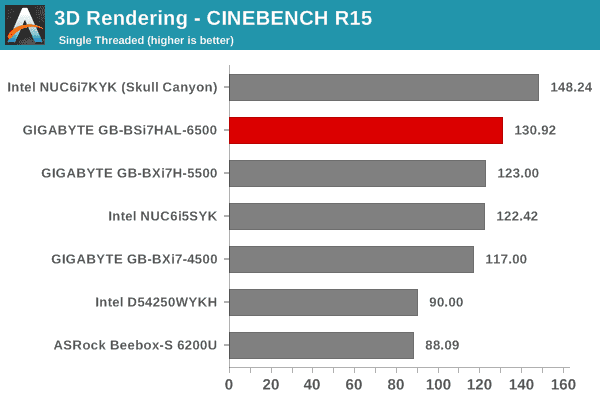

3D Rendering - CINEBENCH R15 - Single Thread

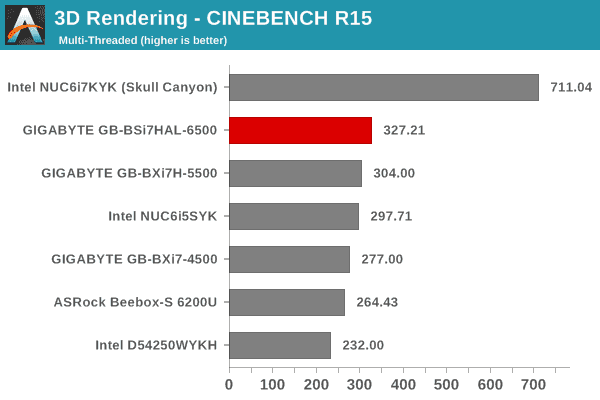

3D Rendering - CINEBENCH R15 - Multiple Threads

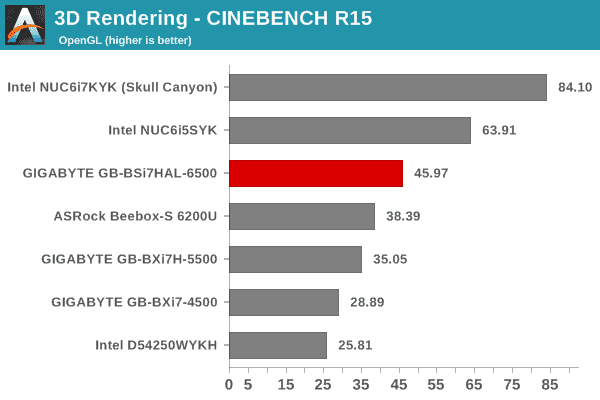

3D Rendering - CINEBENCH R15 - OpenGL


In the single-threaded and multi-threaded cases, the power of the Core i7-6500U comes through compared to the other Skylake-U CPUs evaluated before. In the OpenGL benchmark, the units with more powerful GPUs – the NUC6i5SYK and the Skull Canyon NUC – score better.


In this section, we mainly look at benchmark modes in programs used on a day-to-day basis, i.e, application performance and not synthetic workloads.


x264 Benchmark


First off, we have some video encoding benchmarks courtesy of x264 HD Benchmark v5.0. This is simply a test of CPU performance. The ordering of the scores seen in the SYSmark and PCMark 8 CPU benchmarks repeats here also.

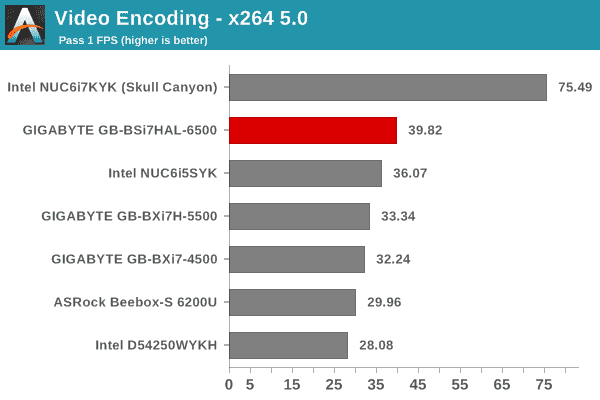

Video Encoding - x264 5.0 - Pass 1

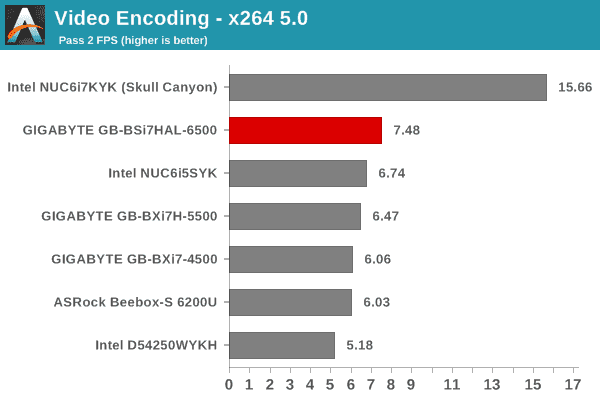

Video Encoding - x264 5.0 - Pass 2


7-Zip


7-Zip is a very effective and efficient compression program, often beating out OpenCL accelerated commercial programs in benchmarks even while using just the CPU power. 7-Zip has a benchmarking program that provides tons of details regarding the underlying CPU’s efficiency. In this subsection, we are interested in the compression and…
